FEATURES:
- The kinematics are similar to the Spur with a little over 27% progression. This provides a bottomless feel in a mid-travel package. Paired with the Fox Float X shock, the Smuggler can be set up to suit any rider's preference. Looking to increase rear travel? Simply remove the travel reducer in the shock to bump the travel up to 140mm. Looking for a bit more progression? Just add a larger volume spacer. All of this equates to a super lively, active, and forgiving rear suspension feel in any terrain.
- The Smuggler exhibits a few frame design features that further Transition's push to have clean aesthetics while remaining easy to service. The most notable is the headtube area that provides better functionality and serviceability. The new headtube has integrated bearing cups and no longer needs headset cups pressed into the frame. This allows the frame to have super clean cable ports at the front of the headtube with fully guided internal cable routing from the headtube to the port above the bottom bracket shell. From there, cables cleanly enter the rear triangle hidden from view.
- A wide usable sag range of 25 - 35% allows the rider to tune the feel of the bike; from firm and snappy, to more supple and active. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.
- Speed balanced geometry ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
SPECS:

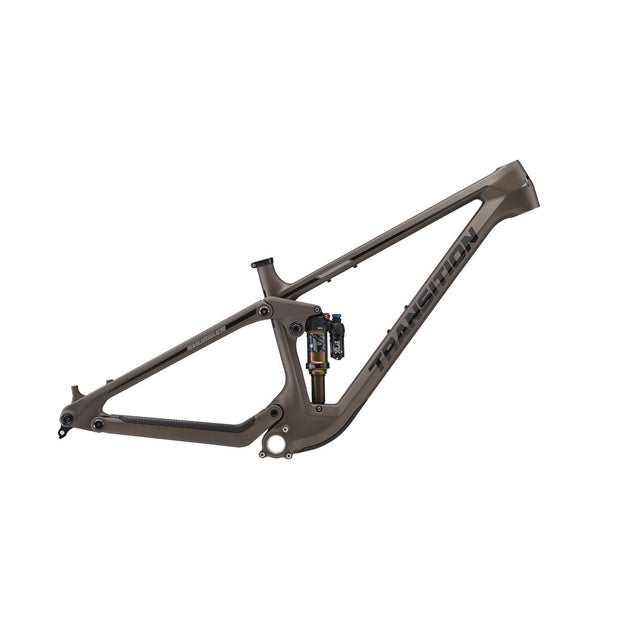

- Frame: Smuggler Carbon 130mm
- Rear Shock: Fox Float X Performance 2-position
- Fork: Fox Float 34 Grip Performance (140mm)
- Headset: FSA NO.42/48/ACB
- Stem: RaceFace Aeffect R (40mm)
- Handlebar: RaceFace Chester 35 SM (800x20) MD/LG/XL/XXL (800x35)
- Grips: ODI Elite Flow
- Saddle: SDG Bell Air V3
- Seatpost: OneUp Dropper Post SM (120mm), MD (150mm), LG (180mm), XL (210mm)
- Brakes: SRAM Code R
- Rotors: SRAM Centerline (200/180mm)
- Shifter: SRAM MX Eagle
- Rear Derailleur: SRAM GX Eagle
- Cassette: SRAM XG 1275 (10-52t)
- Chain: SRAM GX Eagle
- Crank: SRAM Stylo 6K DUB (32t/170mm)
- Rims: WTB ST i30
- Spokes: Pillar double-butted
- Hubs: Novatech D791SB/D902SB
- Front Tire: Maxxis Aggesai 3C EXO (29x2.5)
- Rear Tire: Maxxis Dissector 3C EXO (29x2.4)
- Tubes: Tubeless Valves & Sealant
